• rotary tiller 1000 series

Rotary Tiller 1000 Series

GreenSystem Rotary Tiller 1000 series is an efficient implement , it can be used as both primary as well as secondary implement , depending on the soil conditions. It is used for breaking soil clods, residue incorporation and getting the seed bed ready for sowing the crops. It is most suitable for crops such as Food grains , cash crops , plantation crops as well as horticulture crops.

Look out for :

  • Enhanced Productivity
  • High Durability
  • Low Maintenance Cost

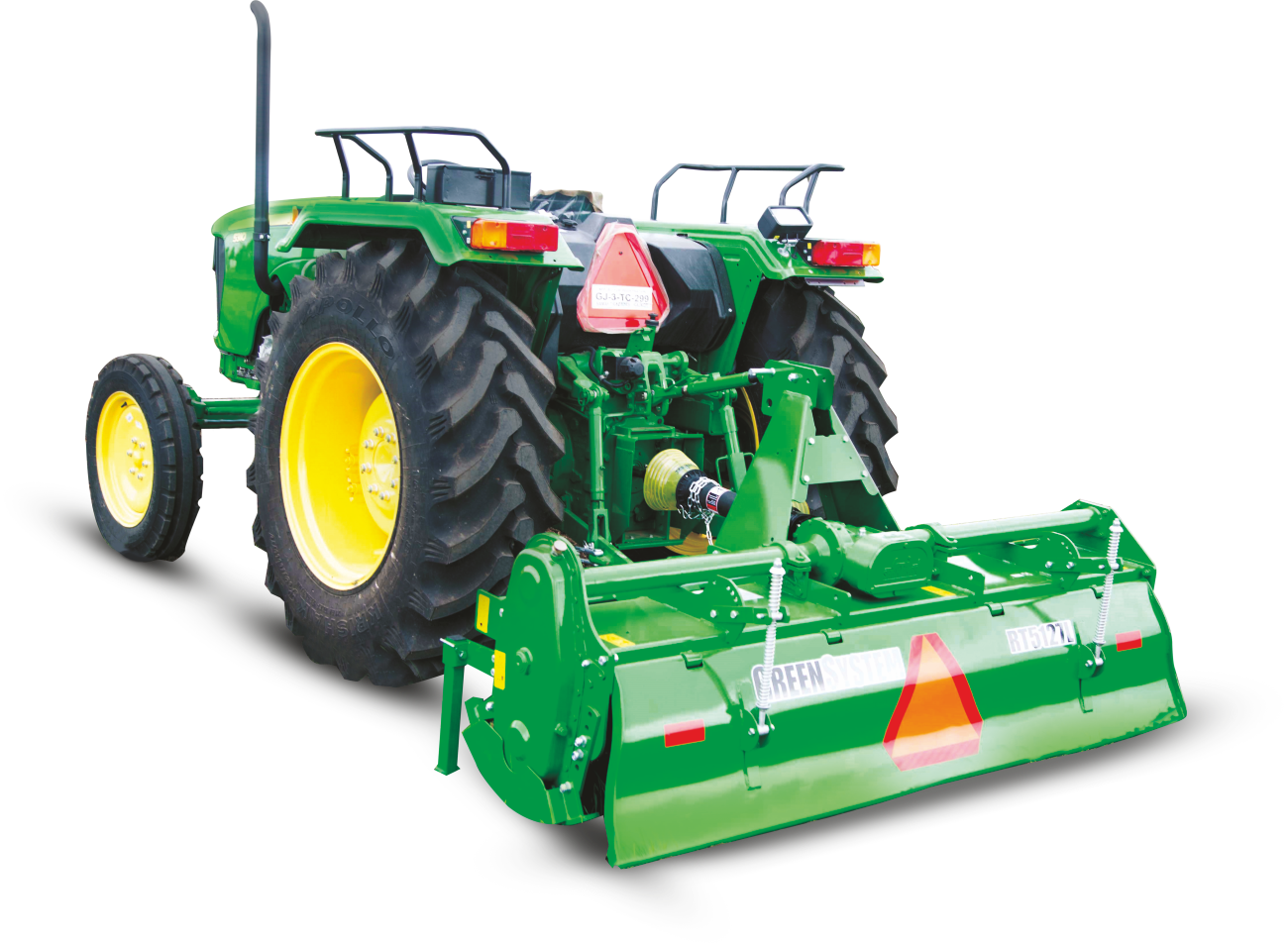

Rotary Tiller 5000 Series

rotary-tiller-5000-series

GreenSystem Rotary Tiller 5000 series is an efficient implement , it can be used as both primary as well as secondary implement , depending on the soil conditions. It is used for breaking soil clods, residue incorporation and getting the seed bed ready for sowing the crops. It is most suitable for crops such as Food grains , cash crops , plantation crops as well as horticulture crops.

Look out for :

  • Enhanced Productivity
  • High Durability
  • Low Maintenance Cost

Feature

Expand AllCollapse All

Skid Shoe for Depth Control

Working depth can be easily controlled with the help of adjustable skid shoe.

Boron Steel Blade

  • Better incorporation of weeds and residues
  • Hardened boron steel blades and increased life

Skid Shoes for better life of skid plates

\

Additional plate below skids, more life of the skid shoes and less maintenance cost.

Reliable Transmission

  • High sensitive air breather prevents entry of water or mud into the gear box and maintains temperature
  • Perfect match with John Deere 5000 series tractors

Specification

Expand AllCollapse All

Rotary Tiller 5000 Series Specifications

Variants

Units

Light - REGL



Standard - REGP



Model



RT5126L

RT5127L

RT5026L

RT5026J

RT5026AJ

Size In

ft

6

7

6

6

6.5

Working Width

mm

1907

2107

1881

1881

1994

Total Length



2052

2252

2026

2026

2139

No.of blades & Types



54,L

60,L

42,L

54,L

72,C

78, C

Wight

kg

407

411

464

450

450

472

Gear Pair

17-19

Gearbox Speed

Multi Speed

Side Drive

Gear

Suitable Tractor



42-57

50-65

50-65

50-65

55-70

Rotary Tiller 5000 Series Specifications

Variants

Units

Light - REG



Light - RSM









Model



RT5315

RT5316

RT5425

RT5426

RT5416

RT5417

RT5515

RT5516

RT5526

Size In

ft

5

6

5

6

7

5

6

6

Working Width

mm

1509

1775

1615

18881

2114

1615

1804

1804

Total Length



1734

2000

1760

2026

2259

1778

1937

1937

No.of blades & Types



36,L

42,L

36,L

42,L

60, J

36, J

42 , L

42, L

Wight

kg

399

429

408

440

427

457

411

451

474

Gear Pair



17-19

16-20

N.A

N.A

N.A

16-19



Gearbox Speed



Single  Speed

Multi Speed

Single Speed

Single Speed

Single Speed

Single Speed

Multi Speed

Side Drive

Gear

Suitable Tractor



35-50

45-60

55-70

45-60

50-60

50-60
