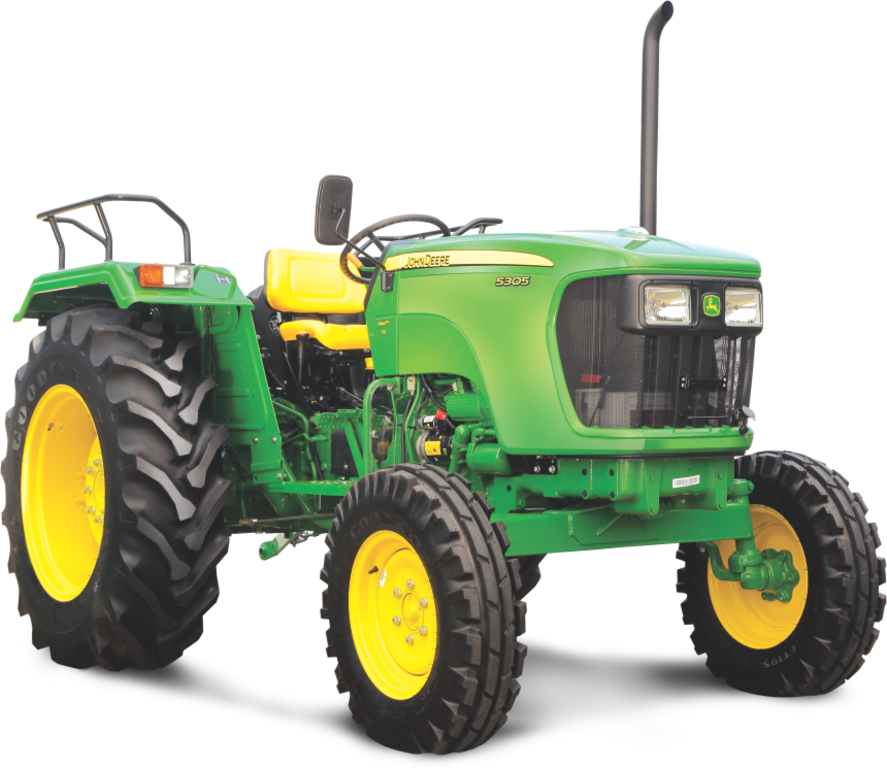

John Deere tractor 5305 is equipped with a powerful 3-cylinder engine and 8+4 collarshift transmission. Optional features like reverse PTO and adjustable front axle makes this agricultural tractor best suited for straw reaper and potato planter.
HIGH-LEVEL BENEFITS:
HIGH-LEVEL BENEFITS:
Power steering is a standard feature in all John Deere tractor
| Type | John Deere 3029T, 55 HP (41.6 kW), 2400 RPM, 3 Cylinders, Coolant cooled with overflow reservoir, Turbo charged | |||
|---|---|---|---|---|
| Air Filter | Dry Type, Dual element |
| Clutch | Single/ Dual | |||
|---|---|---|---|---|
| Gear box | 8 Forward + 4 Reverse, Collarshift | |||
| Speeds | Forward 2.6 – 32.4 kmph Reverse 3.5 -13.6 kmph |
| Brakes | Oil immersed disc brakes |
|---|
| Maximum Lifting capacity | 1600 kgf | |||
|---|---|---|---|---|
| 3 Point Linkage | Category- II Automatic depth and draft control (ADDC) |
| Type | Power |
|---|
| Type | Independent, 6 Splines | |||
|---|---|---|---|---|
| Standard | 540 @ 2100 ERPM | |||
| Economy | 540 @ 1600 ERPM |
| Front | 6.0 x 16 (0.15 x 0.41 m), 8 PR 6.5 x 20 (0.17 x 0.51 m), 8 PR (Optional) 7.5 x 16 (0.19 x 0.41 m), 8 PR (Optional) |
|||
|---|---|---|---|---|
| Rear | 14.9 x 28 (0.38 x 0.71 m), 12 PR 16.9 x 28 (0.43 x 0.71 m), 12 PR (Optional) |
| Capacity | 60 L |
|---|
| Electrical System | 88 Ah, 12 V Battery, 40 Amp. Alternator, 12 V, 2.5 kW Starter motor |
|---|
| Total weight | 1920 kg | |||
|---|---|---|---|---|
| Wheel base | 1960 mm | |||
| Overall length | 3420 mm | |||
| Overall width | 1810 mm | |||
| Ground clearance | 0430 mm | |||
| Turning radius with Brakes | 2900 mm |
| Accessories | • Ballast Weights • Canopy • Canopy holder • Draw bar • Tow hook • Wagon hitch |
|---|
| Factory Fitted Options | • Reverse PTO • Roll over protection structure (ROPS) with deluxe seat and seat belt • Adjustable front axle • Mechanical quick raise and lower (MQRL) • Selective control valve (SCV) |
|---|
Standard Features -
Top shaft lubrication in gear box, Piston spray cooling jet & Rear oil axle with metal face seal are standard features in all 5D Models making these a versatile, durable & low maintenance range of tractors.
