5210 GearPro™
Now available for MFWD models with factory fitted GreenSystem™ link connectivity feature
To know more about John Deere tractor price range connect with your nearest dealer now !
5210 GearPro™ - Xtra Range. Xtra Dum.
5210 GearPro™

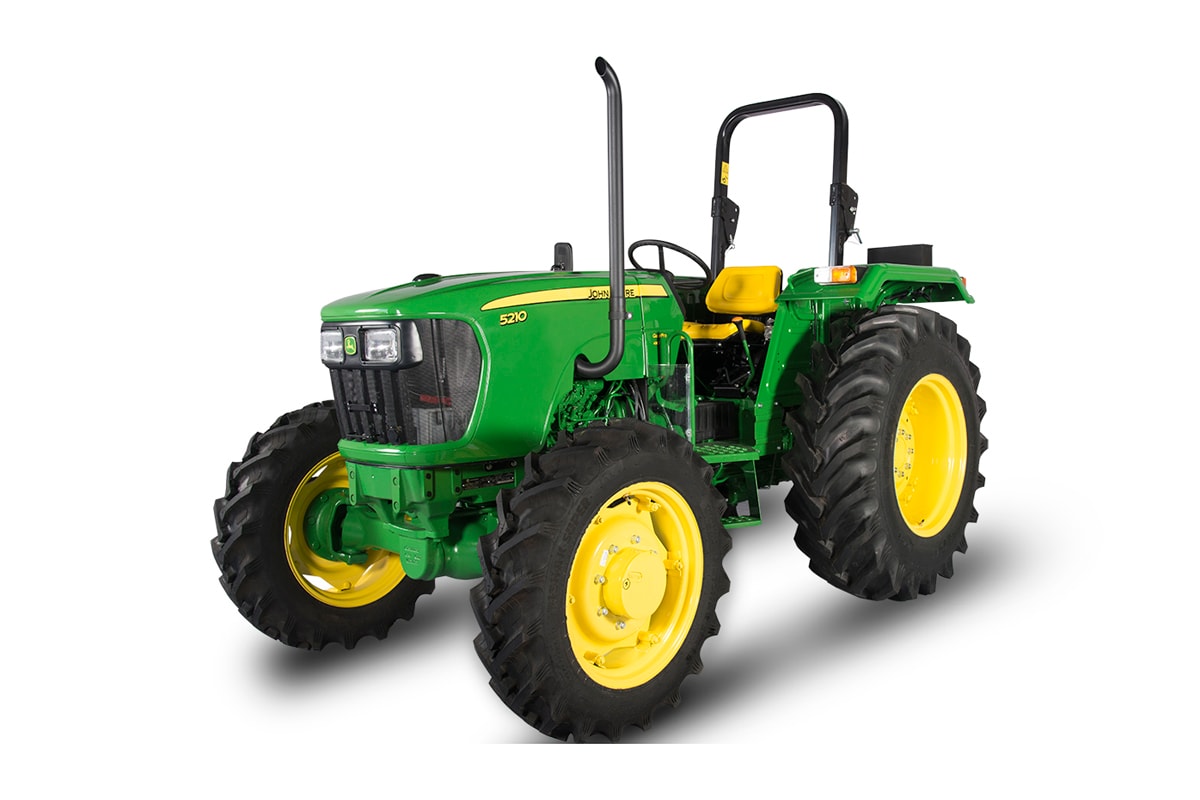

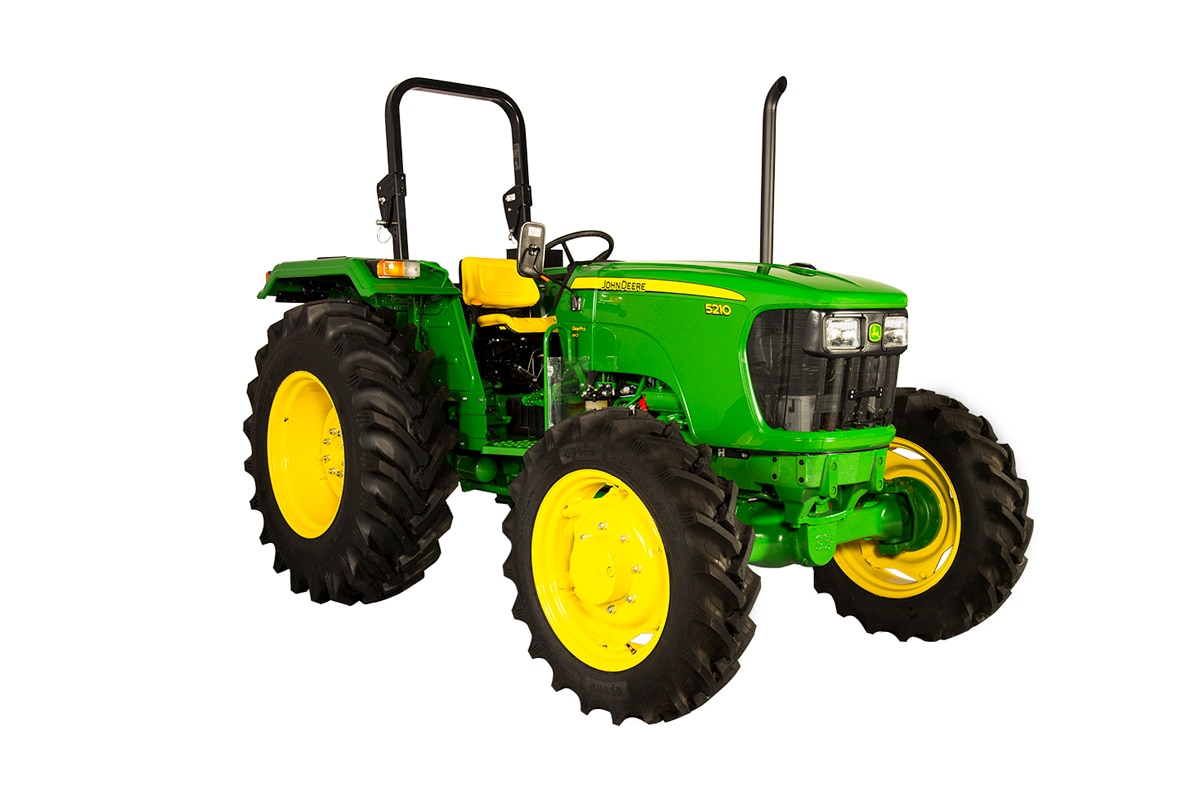

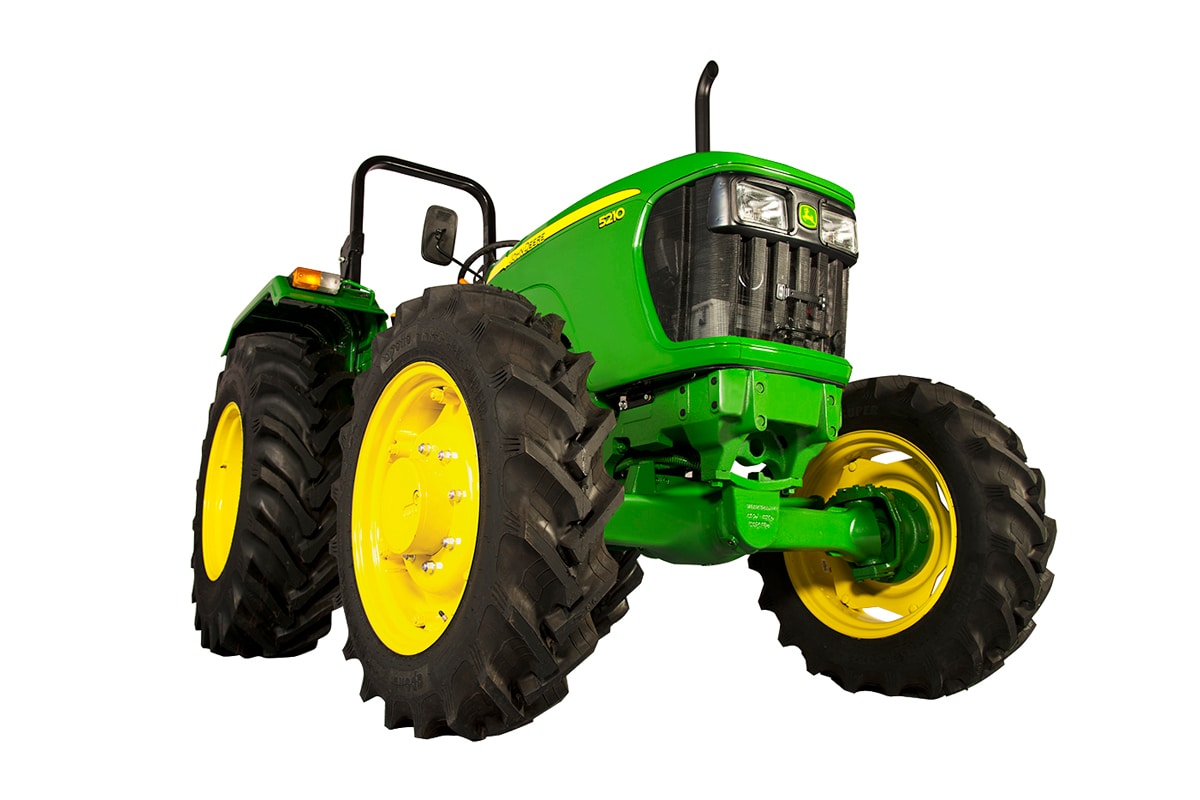

Introducing John Deere 5210 GearPro™, a 50 HP tractor expertly built to provide Xtra Range and Xtra Dum !
This new age tractor is packed with high power, technology, reliability and 4 range gear speeds. Keeping in mind the specific requirements of Indian farmers needs, this comfortable tractor is designed ergonomically to suit all kinds of major applications.
- 4 Range Gears
- 38% Back Up Torque
- Higher lifting capacity – 2000 kgf / 2500 kgf
- 4 WD
- Reverse PTO and Dual PTO
- SCV
- Electrical Quick Raise & Lower (EQRL)
- Bigger Size Tyre
- Sway Bar
- Suspended Pedal
- Planetary Gear
- Self-adjusting, self-equalizing, Hydraulically actuated Oil Immersed Disc Brake
- Top Shaft Synchronizer
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere 5210 GearPro™
|
Specs
| Specs | 2WD and 4WD |
|---|
Engine
| Type | 50 HP (36.5 kW), 2100 RPM, 3 Cylinder, Direct injection, Turbo charged, Inline FIP, coolant cooled with over flow reservoir | |||
|---|---|---|---|---|
| Air Filter | Dry type, dual element |
Transmission
| Clutch | Dual clutch, Dry clutch | |||
|---|---|---|---|---|
| Gear Box | 12F + 4R (GearPro Speed) 9F + 3R (Creeper Speed) |
|||
| Speeds | Forward 2.1 to 28.9 kmph (12x4 GearPRO) , 0.40 to 0.8 kmph ( 9x3 Creeper) Reverse 3.4 to 22.4 kmph (12x4 GearPRO) |
Brakes
| Brakes | Self Adjusting, Self Equalising, Hydraulically Actuated, Oil immersed disc brakes |
|---|
Hydraulics
| Maximum Lifting Capacity | 2000 kgf / 2500 kgf (optional) | |||
|---|---|---|---|---|
| 3 Point Linkage | Category II, Automatic depth & draft control (ADDC) |
Steering
| Steering | Power Steering |
|---|
Power Take Off
| Type | Independent, 6 splines | |||
|---|---|---|---|---|
| RPM | Dual PTO Standard: 540 @ 2100 RPM Economy: 540 @ 1600 RPM Reverse PTO |
Fuel Tank Capacity
| Capacity | 68 L |
|---|
Wheels and Tyres (2WD)
| Front | 6.5 x 20 (0.17 x 0.51 m), 8PR 7.5 x 16 (0.19 x 0.41 m), 8 PR |
|||
|---|---|---|---|---|
| Rear | 16.9 x 28 (0.43 x 0.71 m), 12 PR 14.9 x 28 (0.38 x 0.71 m), 12 PR |
Wheels and Tyres (4WD)
| Front | 9.5 x 24 (0.24 x 0.61 m), 8 PR | |||
|---|---|---|---|---|
| Rear | 16.9 x 28 (0.43 x 0.71 m), 12 PR |
Electrical System
| Electrical System | 88 Ah, 12 V Battery, 40 Amp. Alternator, 2.5 kW Starter motor |
|---|
Dimensions and Weight (2WD)
| Total Weight | 2110 kg | |||
|---|---|---|---|---|
| Wheel base | 2050 mm | |||
| Overall length | 3535 mm | |||
| Overall width | 1850 mm | |||
| Turning radius with brakes | 3150 mm |
Dimensions and Weight (4WD)
| Total Weight | 2410 kg | |||
|---|---|---|---|---|
| Wheel base | 2050 mm | |||
| Overall length | 3585 mm | |||
| Overall width | 1875 mm |
Optional Accessories
| Optional Accessories | Ballast Weights Canopy Canopy holder Draw bar Wagon hitch |
|---|

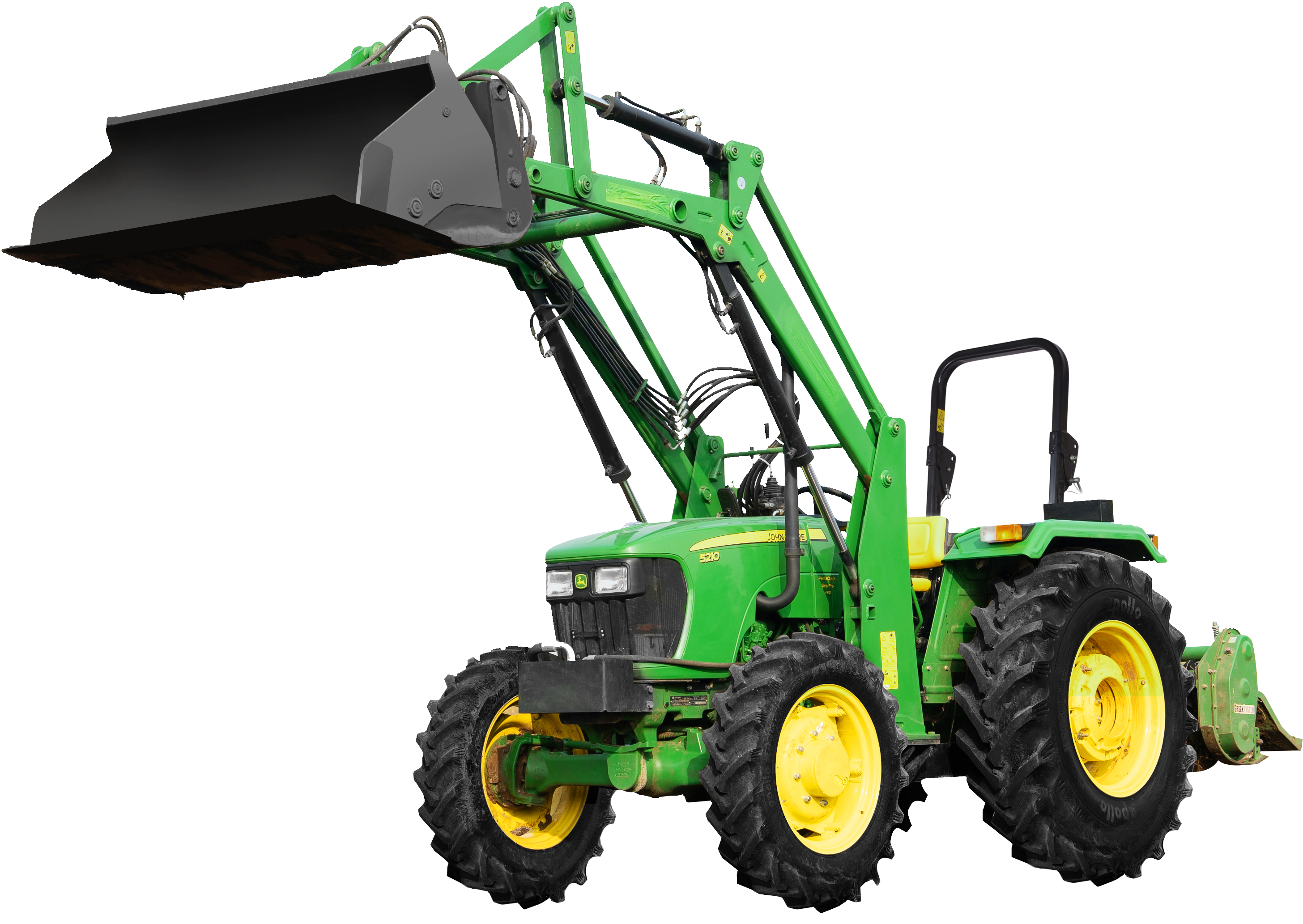

5210 GearPro™ PermaClutch™
John Deere 5210 GearPro™ PermaClutch™ is an industry exclusive feature . The model comes with Single Clutch & Single PTO. It offers significant value to customers by enhancing uptime through its Durability, Reliability, Ease of operation and Lower operating cost.
Look out for :
- Single PermaClutch™
- 2WD Global and fixed front axel
- Model available without rockshaft
- Model available with single SCV
- 12F + 4R Speeds, Suspended Pedal
- Planetary Gear
- Self-adjusting, self-equalizing, Hydraulically actuated Oil Immersed Disc Brake
Features
Expand AllCollapse All
Premium Seat
Increased Comfort:
Provides superior cushioning and support, making long working hours more comfortable and less tiring
Rubber Floor MAT
Anti slip floor MAT provides comfort and safety to the operator.
It also provides better aesthetics to the tractor
Stylish Steering Wheel
- Enhanced operator comfort
- Ensures low driving fatigue for operators even after long working hours
- Adds a modern and stylish look to the tractor, enhancing the overall user experience
GearPro Speed
Enhanced Versatility, improved efficiency and productivity
Product Overview
John Deere 5210 GearPro is a combination of advanced technology and power, thus making it a tractor with Extra Range and Extra Dum ! Apart from farming work, many other operations can be done from this tractor, such as loading, dozing, levelling, post hole digging, haulage, shallow puddling, store ripper, or vegetable planting with creeper gear. ...
