5310 TREM-IV Tractor

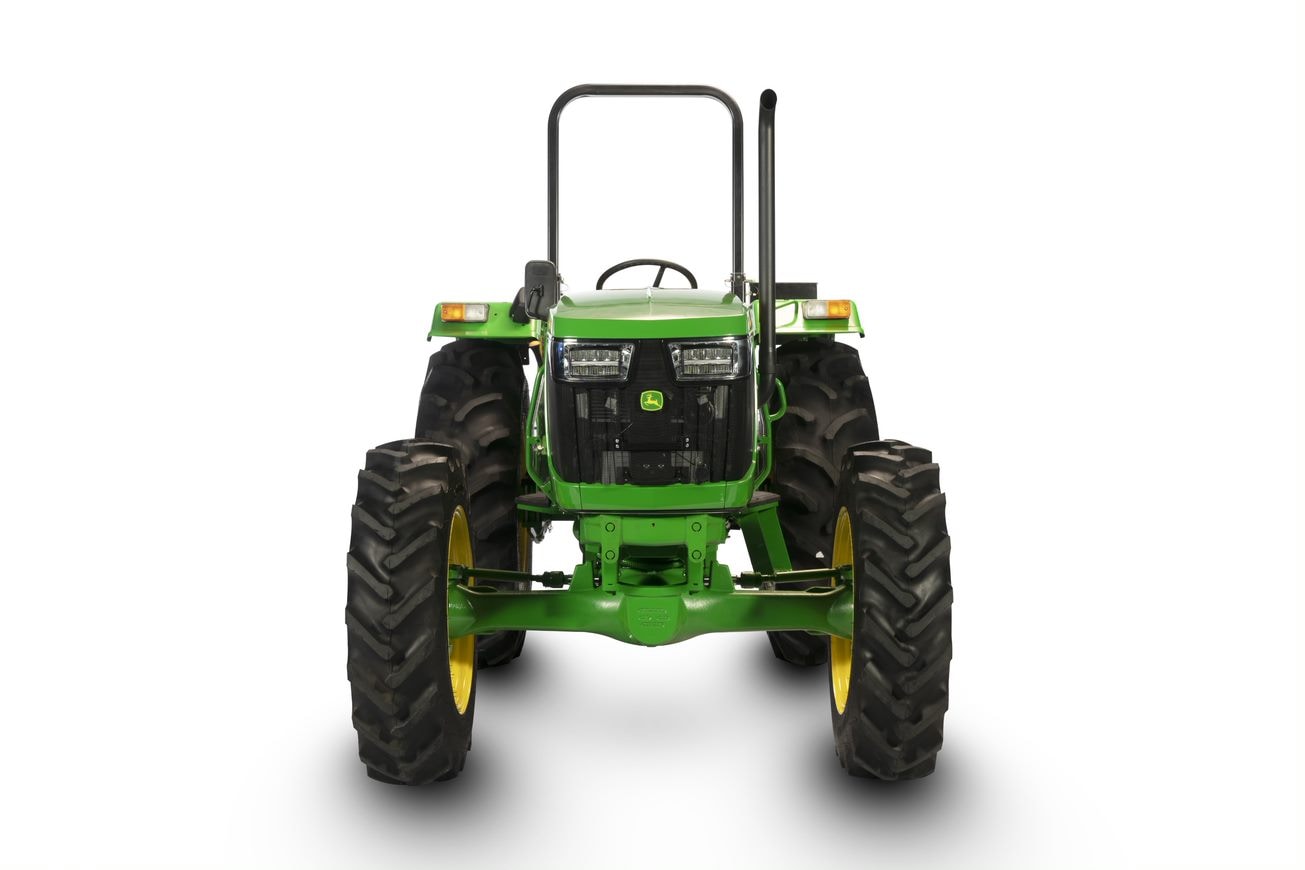

5310 Tractor Front

John Deere 5310 is a versatile 55 HP TREM IV tractor, designed with superior technology and backed by a PowerTech engine. This reliable and tech forward machine is in compliance with the TREM IV emission norms . It delivers exceptional performance and power. This environment friendly tractor compliments a wide range of applications, and is suitable in various soils and topographical conditions.

View Product Brochure

To know more about John Deere tractor price range connect with your nearest dealer now !

Tractor Price   Tractor Loan

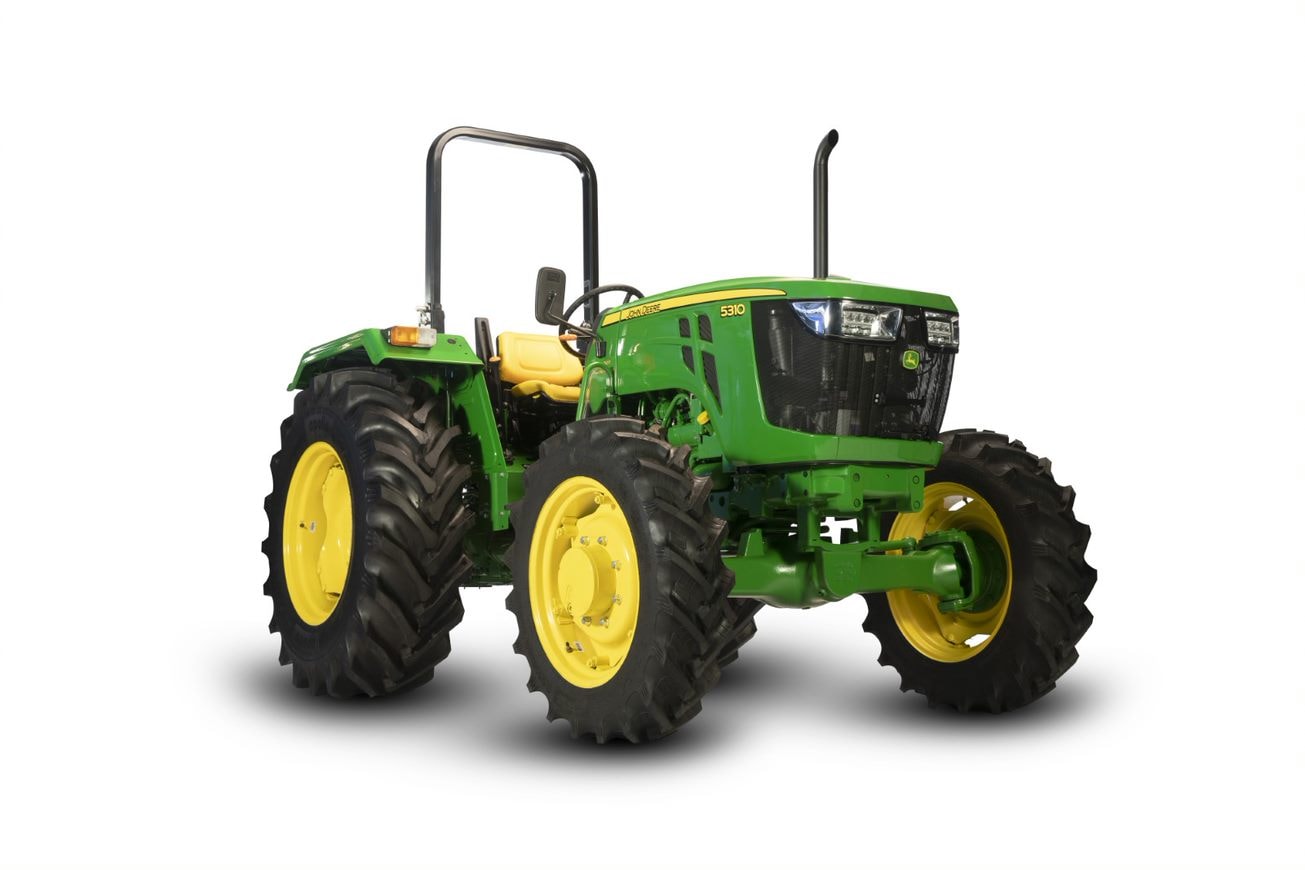

5310 Tractor Right Angle

Look out for :

  • Wider platform with floor mat
  • Combination switch
  • Increased lifting capacity (2500kgs)
  • Dual Engine Mode switch (Economy & Standard)
  • Longer service interval of Engine (500 Hours)

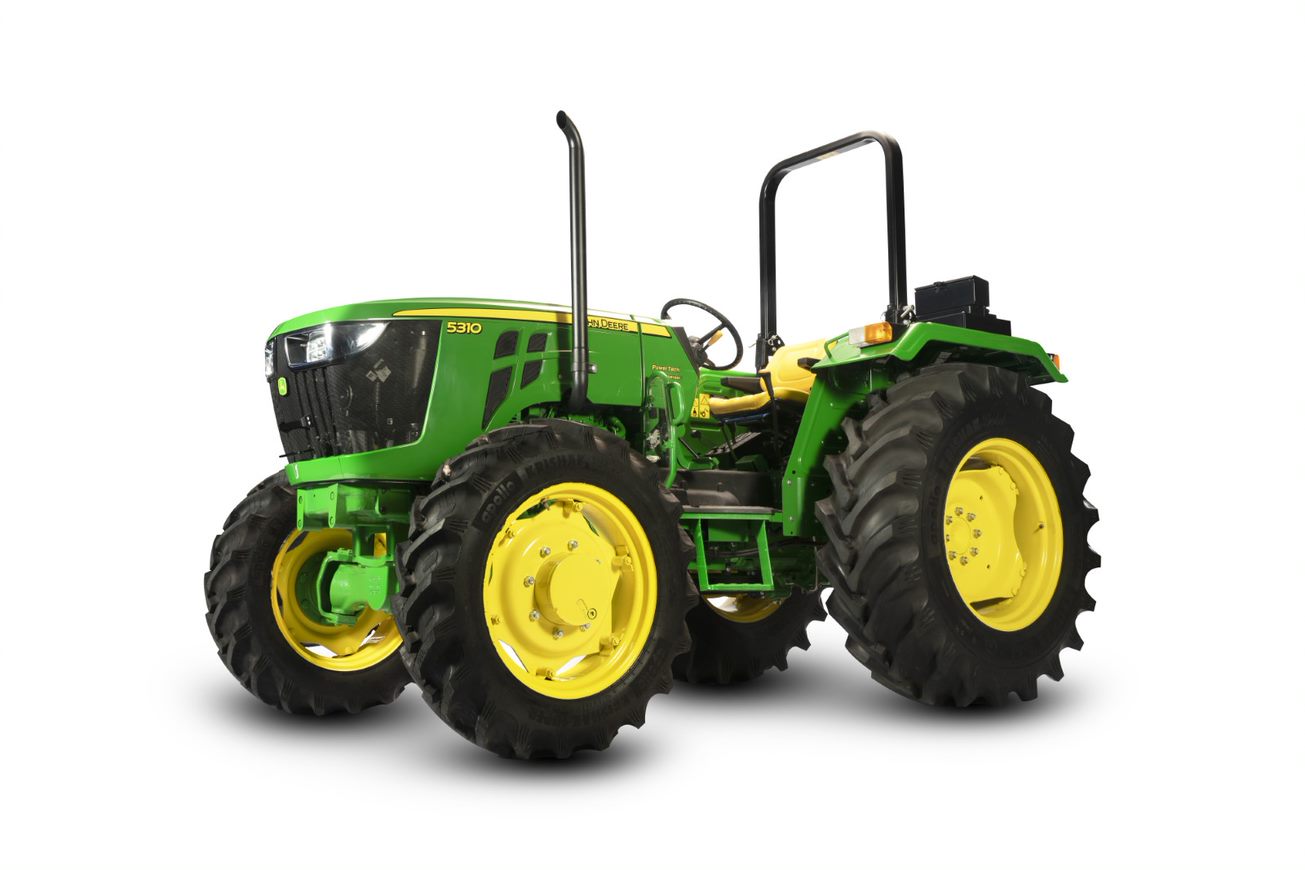

5310 Tractor Left Angle

Features

  • Dual Torque Mode
  • Longer service interval
  • Combination Switch
  • Wider platform with rear floor extensions

Specifications

Expand AllCollapse All

Engine

Type - John Deere 3029H, 55 HP (41 kW), 2100 RPM, 3 Cylinders, Turbo Charged, HPCR fuel injection system, Coolant cooled with overflow reservoir, Naturally aspirated
Air Filter - Dry Type, Dual element

Transmission

Clutch - Dual clutch, Dry clutch, EH clutch (optional)
Gear box - 12F + 4R (GearPro Speed)
                   12F + 12R (PowrReverser Speed)
                    9F + 3R (Creeper Speed)
Speeds - Forward - 12F+4R - 1.9 kmph to 31..4 kmph, 12F+12R - 1.4 kmph to 30.2 kmph, creeper - 0.34 kmph to 0.84 kmph, Reverse -  3.4 kmph to 20 kmph, 12F+12R-1.5kmph to 20 kmph, creeper - 0.59 kmph

Brakes

Brakes - Oil immersed disc brakes

Hydraulics

Maximum Lifting capacity - 2000 Kgf

Steering

Type - Power steering / Tilt steering option

Power Take off

Type - Independent, 6 Splines
Standard - 540 @ 2100 ERPM
Economy - 540 @ 1600 ERPM
Reverse - 516 @ 2100 ERPM

Wheels and Tyres

Front - 2WD-  6.5 x 20, 8 PR
            4WD- 9.5 x 24 , 8 PR
Rear - 2WD- 16.9 x 28, 12 PR
           4WD- 16.9 x 28, 12 PR

Fuel Tank

Capacity - 71 ltr

Electrical System

85 Ah, 12 V battery, Cold charging Amphire - 800 CCA
60 Amp, alternator
12V, 2,5 Kv starter motor

Dimensions and Weight

Total weight - 2WD - 2300 kgs, 4WD-2580kgs
Wheel base - 2050 mm
Overall length - 3678 mm
Overall Width - 1944 mm
Ground clearance - 2WD : 520 mm 4WD : 425 mm

5310 TREM-III Tractor55 HP, 2400RPM

John Deere 5310 is a 55 HP tractor designed for exceptional power and reliability. Its state-of-the-art technology makes it the best choice for wide range of applications in different soil conditions.

Look Out For:

  • High back up torque for heavy duty applications
  • Power steering increases productivity
  • Self-adjusting, self-equalizing Oil immersed disc brakes for higher safety and less maintenance
  • GearPro

Improvement in the product is a continuous process. Hence the information given here is subject to change without prior notice.

Accessories shown are not part of standard equipment. Please contact your nearest dealer for more detailed information.Some of the above features are optional. For more details, please refer online brochure or contact your nearest dealer.
