GreenSystem Square Baler & Rotary Rake
GreenSystem Square Baler & Rotary Rake combination to ensure need of straw Management in the applications like Sugarcane and Paddy crops.
Look Out For :
- The new Square baler and rotary rake implement Combination is here to ensure every need of straw Management
- The rotary rake efficiently collects straw after harvesting and the Square baler makes perfectly sized bales which are easier for the labor collect and transport. The efficient Straw collection by rotary rake and picking system of square baler, customer can experience increase in productivity
Features
Expand All
Collapse All

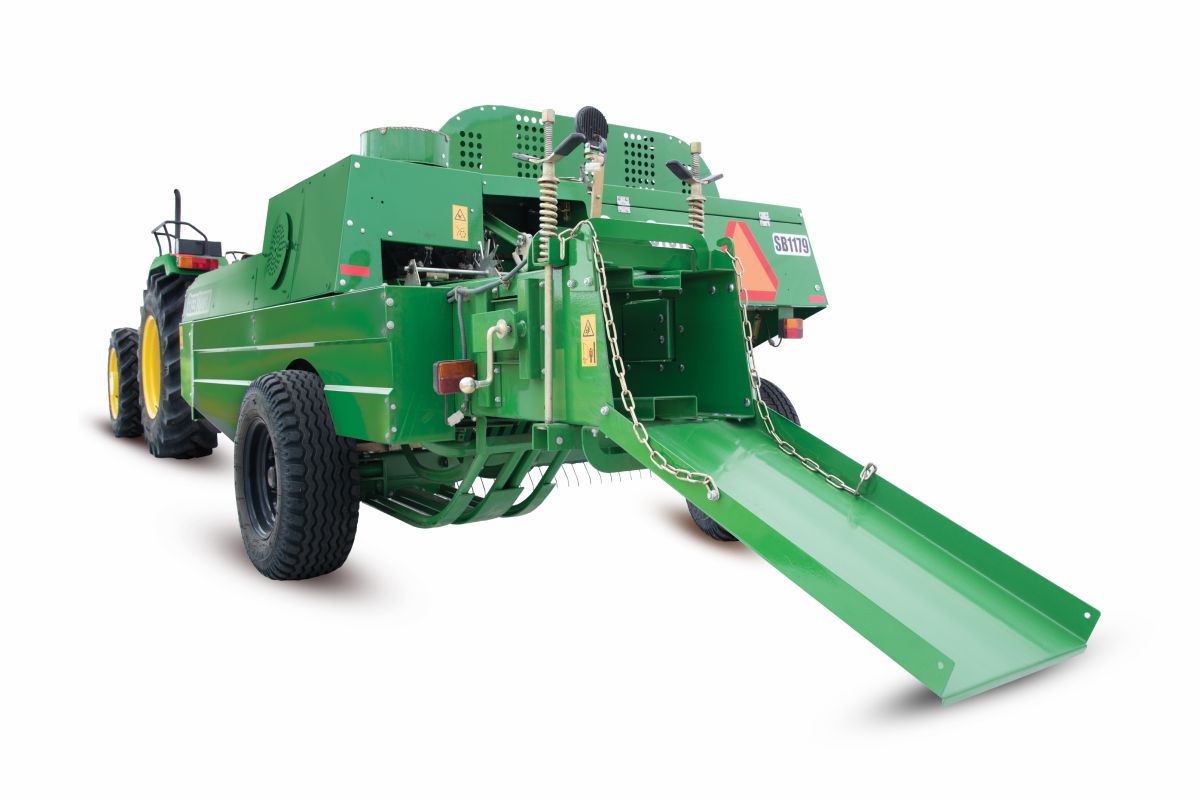

Features & Benefits: Square Baler (SB1179)
1. Bale density settings
Benefits - Versatility of getting same baler used for different crops (rice & sugarcane)
2. Balanced flywheel and Powerful gearbox
Benefits - Reduced vibrations provide stability in operations and leads to more life of machine
3. Strong & Durable Transmission
Benefits - 1. Higher life of machine
2. Low off-season maintenance cost
4. Standard Knotter Set (Deering Type) with cleaning fan
Benefits - 1. Makes high bale density with double knotter system
2. Bale knotting mechanism takes care uniform & smooth binding of bales
5. Drawbar adjustments
Benefits - Ease of maneuverability while working in field and during road transport
6. Feeder
Benefits - Double fork feeder enables to feed more amount of straw for pushing it further to Baling chamber
7. Lighting System
Benefits - Enhanced illumination helps to bale even during low light conditions
8. Support Wheels
Benefits - Support wheel balances baler while using over Ridges & Furrow or in undulated/uneven field conditions

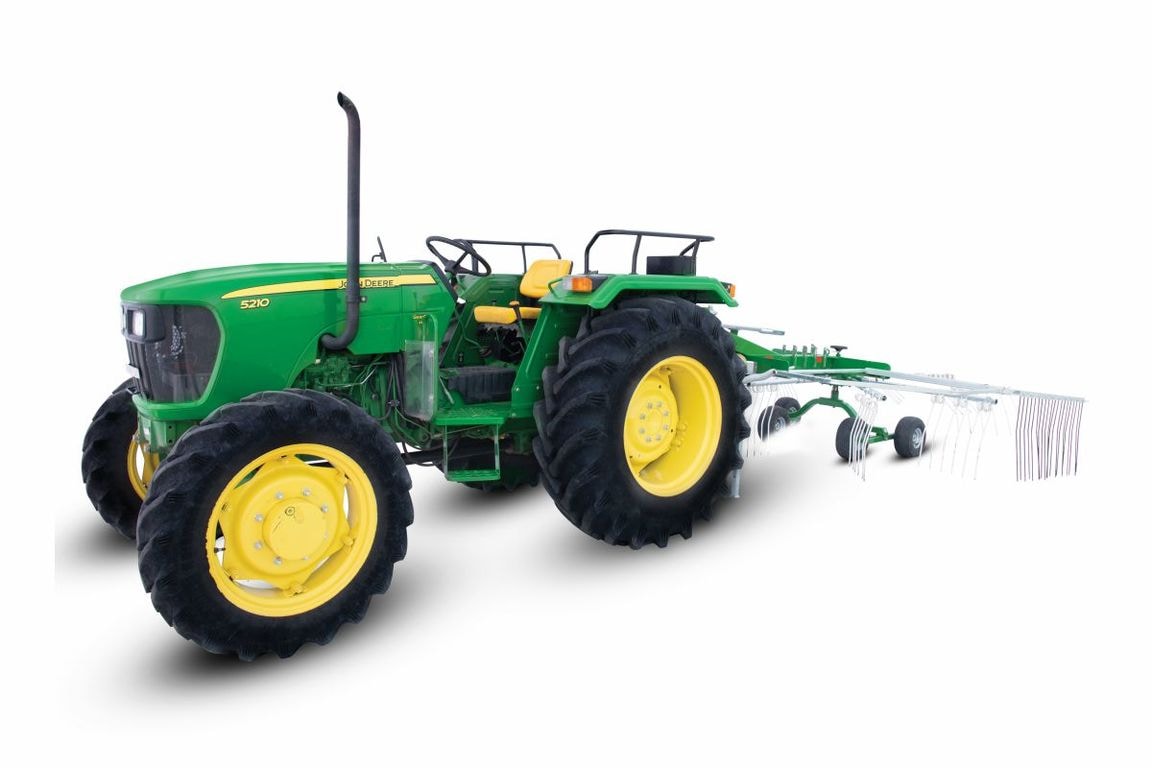

Features & Benefits: Rotary Rake (RR0133)
1. Adjustable Working Height
Benefits - High performance/ high productivity as this helps in various field conditions & type of straws
2. More durable and high strength with- 9 Arms with 3 tines/arm
Benefits - More durable and high strength tine helps in better gathering & alignment of straw
3. Gearbox lubricated in oil bath
Benefits - Enhanced life of gearbox and smooth operation
4. Light frame suitable for low HP tractor
Benefits - Light weight of the machine ensures easy Maneuverability with high performance & suitable for 30 HP & above tractors
5. Tandem Wheel
Benefits - Uniform collection of straw over Ridges & Furrow or even in undulated field conditions
Specs & Compare
Square Baler - SB1179
| Working Dimension (length x width x height) | 608 x 251 x 182 cm | |||
|---|---|---|---|---|
| Pick-up Width (Outer to outer) | 179 cm | |||
| Number of tines | 45 & above 110 | |||
| Bale size (Height x width) | 36 x 46 cm | |||
| Bale size (Length) | 30-135 cm | |||
| Bale Weight | 7 to 35 kg | |||
| No. of knotters | 2 | |||
| Twine Capacity | 6 | |||
| Twine Type | Plastic/Nylon | |||
| Total Empty weight | 1790 kg | |||
| Tractor Compatibility | 48 HP and above (PTO Power 40 HP & above) hp | |||
| Clutch | Dual Clutch | |||
| Hitch Type | Compatible hitch for 5D and 5E tractors | |||
| Propeller Shaft | Standard, Homokinetic, Cardan shaft cover and anti-rotation Chains | |||
| Wheels & Tires | ||||
| Wheels & Tires - LH standard tire size | 10" (254 mm) / 75 – R15.3 | |||
| Wheels & Tires - RH standard tire size | 8.8" (224 mm) / 70 - R15 |
Rotary Rake - RR0133
| Dimension (length x width x height) | 365 x 330 x 110 cm | |||
|---|---|---|---|---|
| Number of Arms | 9 | |||
| Tines per arm | 3 | |||
| Rotor diameter | 290 cm | |||
| No of tires | 4 | |||
| Tire arrangement | Tandem axle | |||
| Gear box oil capacity | 3 liter | |||
| Total Empty weight | 285 kg | |||
| Tractor Compatibility | 30 HP and above HP | |||
| Hitch Type | 3 Point linkage Cat-II | |||
| Propeller Shaft | Standard, Homokinetic, Cardan shaft cover and anti-rotation Chains | |||
| Axle and Wheels | ||||
| Axle and Wheels - LH standard tire size | 6" (152.4 mm)-R6 | |||
| Axle and Wheels- RH standard tire size | 6" (152.4 mm)-R6 |
