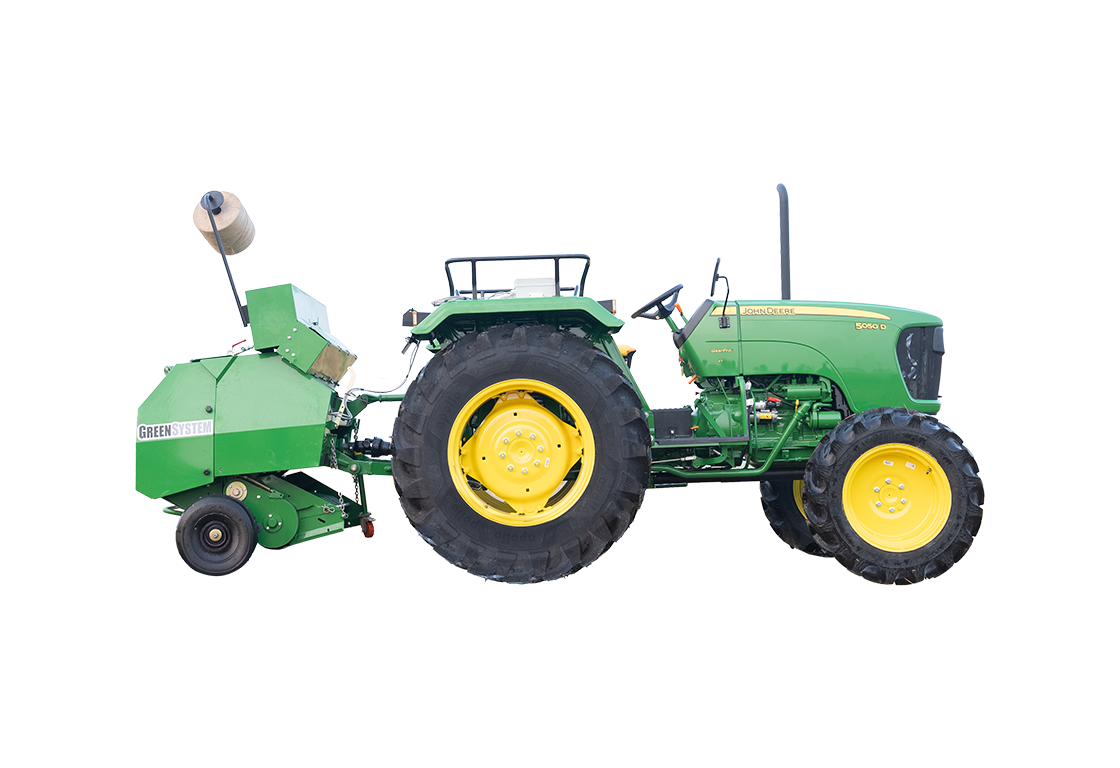

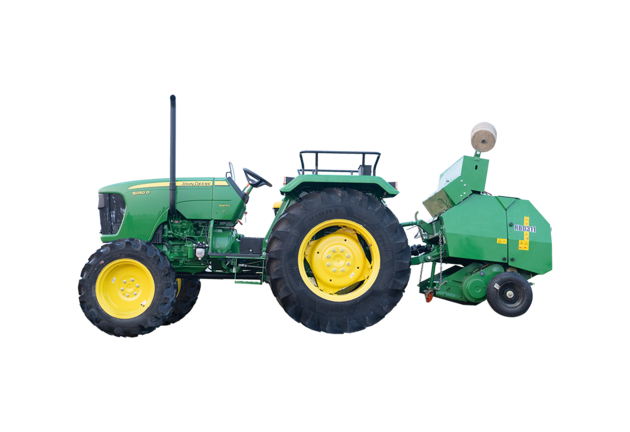

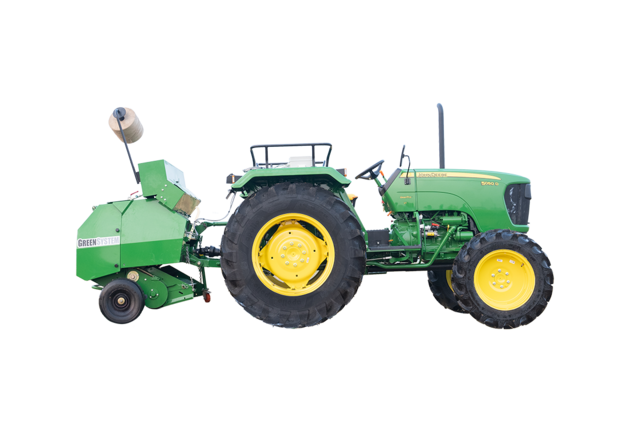

GreenSystem Compact Round Baler offers the perfect solution for managing the Paddy Crop residue. It enables farmers to Bale, handle, transport and store the straw. It has been developed and designed specially for John Deere 5000 Series Tractors.
Better Environment Working
Longer Life, Lesser Maintenance
Twine Baling till edge, Easy handling, Consistence in Bale weight
Low maintenance & Longer Chain Life
Can work in all field condition and improves the floatation
Stand provided with the trolly wheel and locking pin for the easy of handling while parking.
Cone shape coupler compatible for all types of twine bundles.
Lubrication free maintenance system
Prevent the frequent Scale loosening, due to field vibrations
Better reliability & strength can be able to manage the shock load
Ease of bale density setting based on the requirements

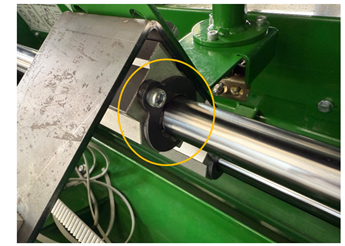

Avoid catching of twine while baling and reduces twine consumption
Counts the number of bales produced automatically and easily eject the bale with an electrical switch
Provides 10, 12 & 14 number of rotations twine binding setting
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere GreenSystem Compact Round Baler
|
| Dimension (LxWxH) | 1750x1250x1450 mm | |||
|---|---|---|---|---|
| Pick-up Width | 1175 (with side cover) mm | |||
| Tractor Compatibility | 45 & above Hp | |||
| Clutch | Dual Clutch | |||
| Bale Size, Width x Diameter | 1050 x 500 (1.6 x 3.4) mm (Ft) | |||
| Bale Weight | 18 to 24 kg | |||
| Binding Type | Jute Twine Marial | |||
| PTO Input Speed | 540 RPM | |||
| Hitch Category | Cat – II Cat | |||
| Overall Machine Weight | 605 kg | |||
| Bale Counter | Digital | |||
| Centralized self-Lubrication | Automatic | |||
| Bale ejection | Electrohydraulic system | |||
| Adjustable bale density | Three options | |||
| Support Wheel | Agricultural Rib Tyre | |||
| No of Rollers | 10 |
| Dimension (LxWxH) | 1450 x 1550 x 1250 mm | |||
|---|---|---|---|---|
| Pick-up Width | 1080 (with side cover) mm | |||
| Tractor Compatibility | 36 & above Hp | |||
| Clutch | Dual Clutch | |||
| Bale Size, Width x Diameter | 930 x 610 (2 x 3) mm (Ft) | |||
| Bale Weight | 25 to 35 Kg | |||
| Binding Type | Jute Twine Marial | |||
| PTO Input Speed | 540 RPM | |||
| Hitch Category | Cat - II Cat | |||
| Overall Machine Weight | 625 Kg | |||
| Bale Counter | Digital | |||
| Centralized self-Lubrication | Automatic | |||
| Bale ejection | Electrohydraulic system | |||
| Adjustable bale density | Three options | |||
| Support Wheel | Agricultural Rib Tyre | |||
| No of Rollers | 12 |
| Dimension (LxWxH) | 1435x1450x1250 mm | |||
|---|---|---|---|---|
| Working Width | 800 mm | |||
| Overall Machine Weight | 520 kg | |||
| Bale Size | 760 x 610 mm 2.5 x 2 ft |
|||
| Bale Weight (Approx.) | 25 to 35 kg | |||
| Binding Material | Jute Twine | |||
| Bale Counter Type | Electronic Display | |||
| Lubrication | Centralized Self Lubrication | |||
| Bale Election | Electronic button with hydraulic operation | |||
| Bale Density | Adjustable | |||
| Support Wheel | Agricultural Rib Tyre | |||
| No. of Rollers | 12 | |||
| Hitch Type | 3 Point Hitch, Cat II | |||
| Suitable Tractor | ||||
| Rating | 35 and above HP | |||
| PTO | 540 RPM | |||
| Clutch Type | Dual |
