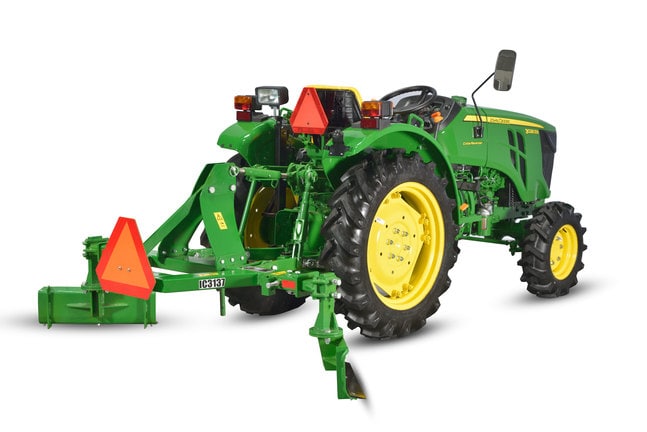

MAT is a multipurpose solution for various inter-culture operations like weeding, soil loosening, ridging, bund forming and Tillage around the plants in orchards and vineyards.

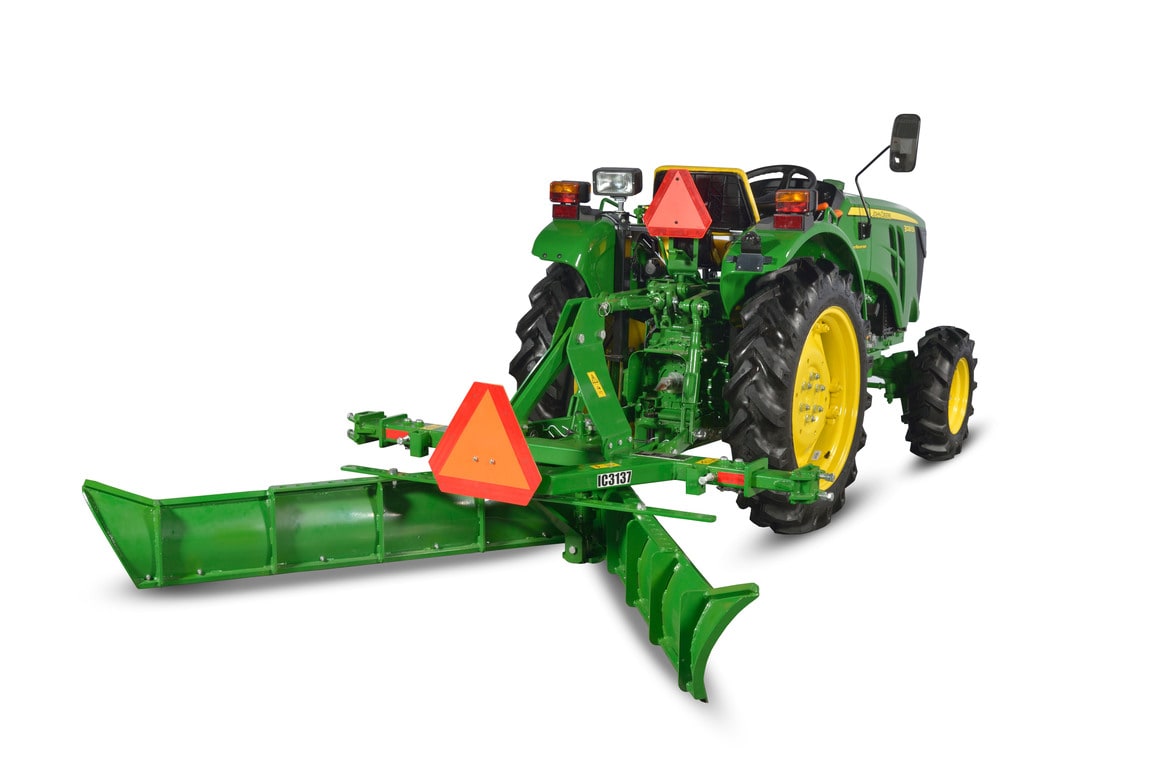

• Width adjustment as per customer requirements of the farming needs to create a basin/Sara which is levelled helping a uniform flood irrigation while levelling it also moves the soil on to the root zone of plant

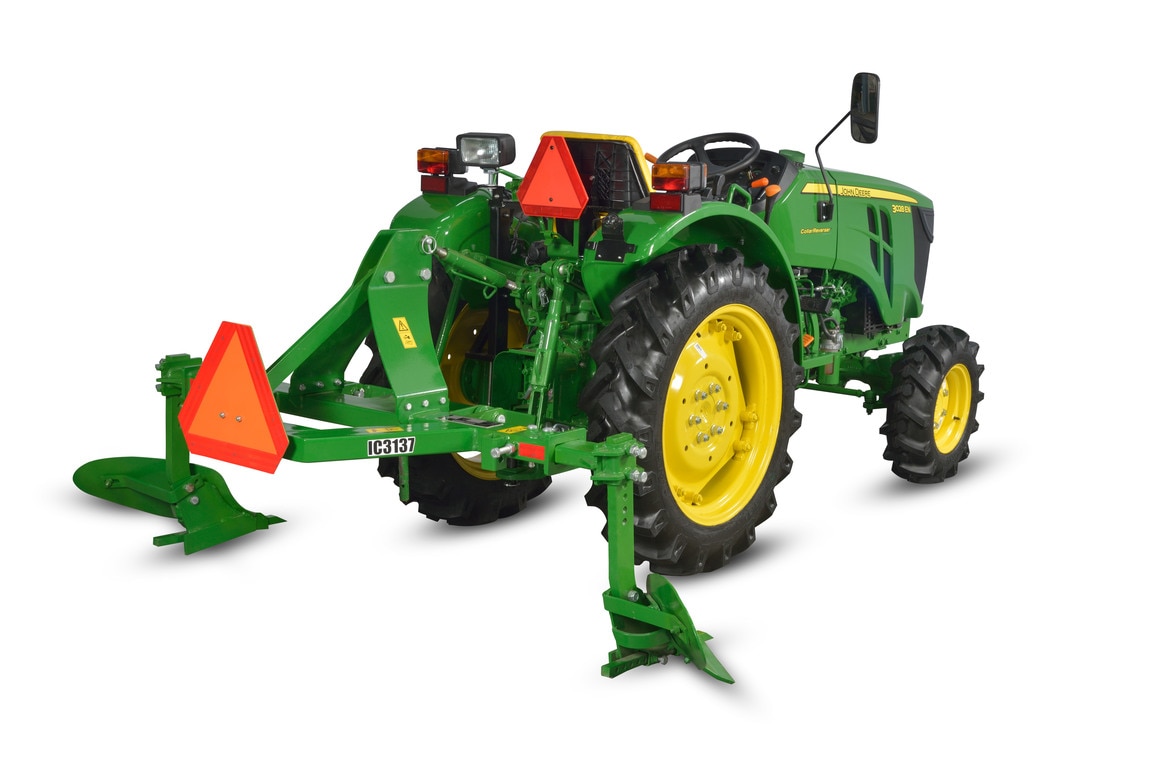

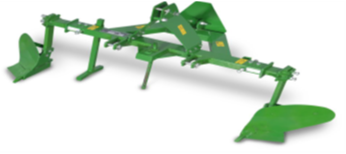

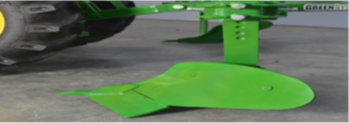

Curved wing creates a raised ridge
• Reversible shovel with higher uptime and reduced cost for replacement
• Sturdily designed of pivot plate and locking plate for arresting all degrees of freedom allows customer to use this implement in multiple soils with a longer life

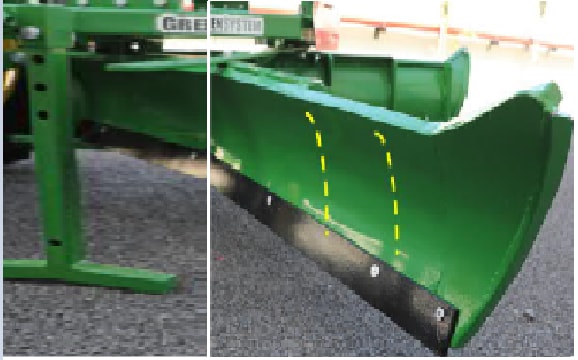

• Replaceable blade which increases the uptime of usability and reduced cost of replacing entire section of curve wing

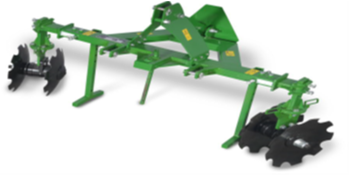

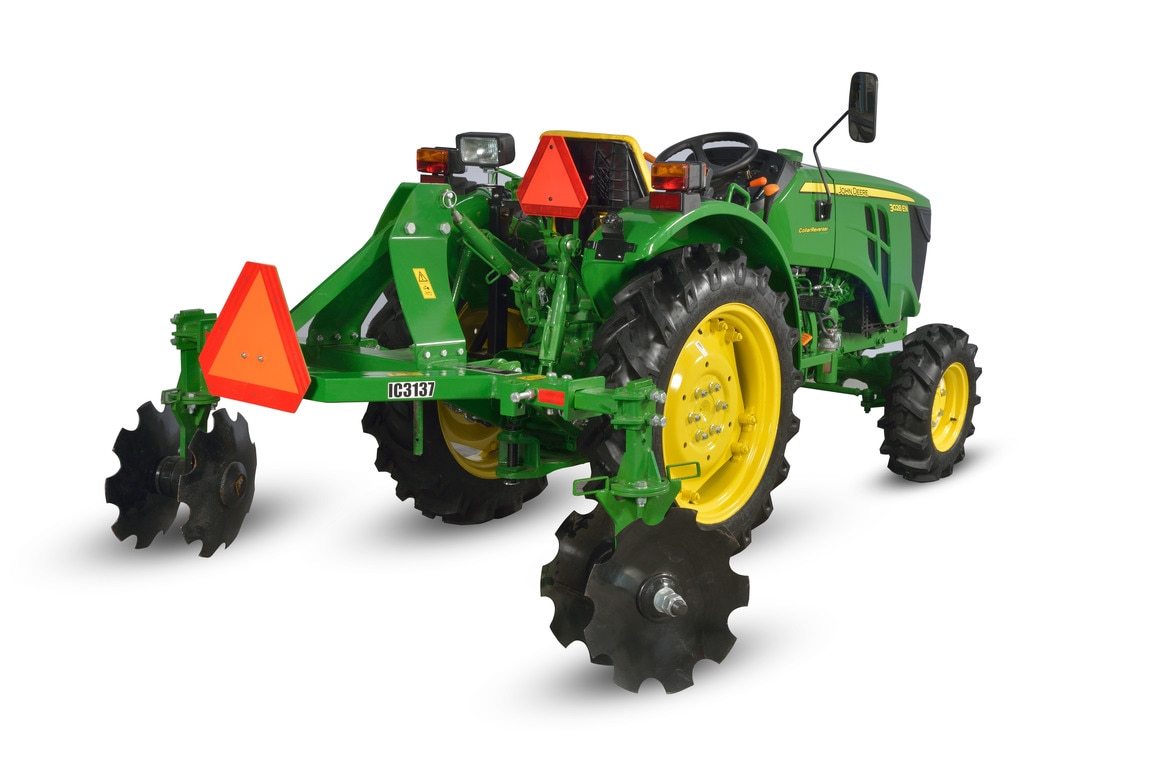

Customer can adjust disc harrow angles for better weed management at the root zone of crop with the help of indexing plate
As per requirement customer can adjust depth and width of disc harrow
This helps to put a soil near root zone of plant
Depth and width of side blade can be adjusted with the help of provision on multi utility frame and can lock this attachment
| Minimum Ground Clearance (Transport Mode), mm | 400 | |||
|---|---|---|---|---|
| Working Width Range, min – max (ft.) | 3-8.5 | |||
| Main frame (mm) | 60 x 110 | |||
| Recommended working speed (kmph) | 2.5-4.2 | |||
| Mounting Hitch Type | Three Point Linkage (CAT-I) | |||
| Working Depth (inch) | -- | |||
| Weight (Kg) | 144 |
| Minimum Ground Clearance (Transport Mode), mm | 400 | |||
|---|---|---|---|---|
| Working Width Range, min – max (ft.) | 6.5-9.5 | |||
| Main frame (mm) | 60 x 110 | |||
| Recommended working speed (kmph) | 3-5 | |||
| Mounting Hitch Type | Three Point Linkage (CAT-I) | |||
| Working Depth (inch) | 3-4 | |||
| Weight (Kg) | 160 |
| Minimum Ground Clearance (Transport Mode), mm | 400 | |||
|---|---|---|---|---|
| Working Width Range, min – max (ft.) | 7.25-10.25 | |||
| Recommended working speed (kmph) | 3-4.5 | |||
| Working Depth (inch) | -- | |||
| Weight (Kg) | 118 |
| Minimum Ground Clearance (Transport Mode), mm | 400 | |||
|---|---|---|---|---|
| Working Width Range, min – max (ft.) | 5.5-8.5 | |||
| Recommended working speed (kmph) | 2.5-3.6 | |||
| Working Depth (inch) | -- | |||
| Weight (Kg) | 150 |
Improvement in the product is a continuous process. Hence the information given here is subject to change without prior notice.
Accessories shown are not part of standard equipment. Please contact your nearest dealer for more detailed information.
Green System brand & trademark is owned by Deere & Company. All rights reserved
